HD9614GTD
HD9614GTD
Tandem Dual Dump Series

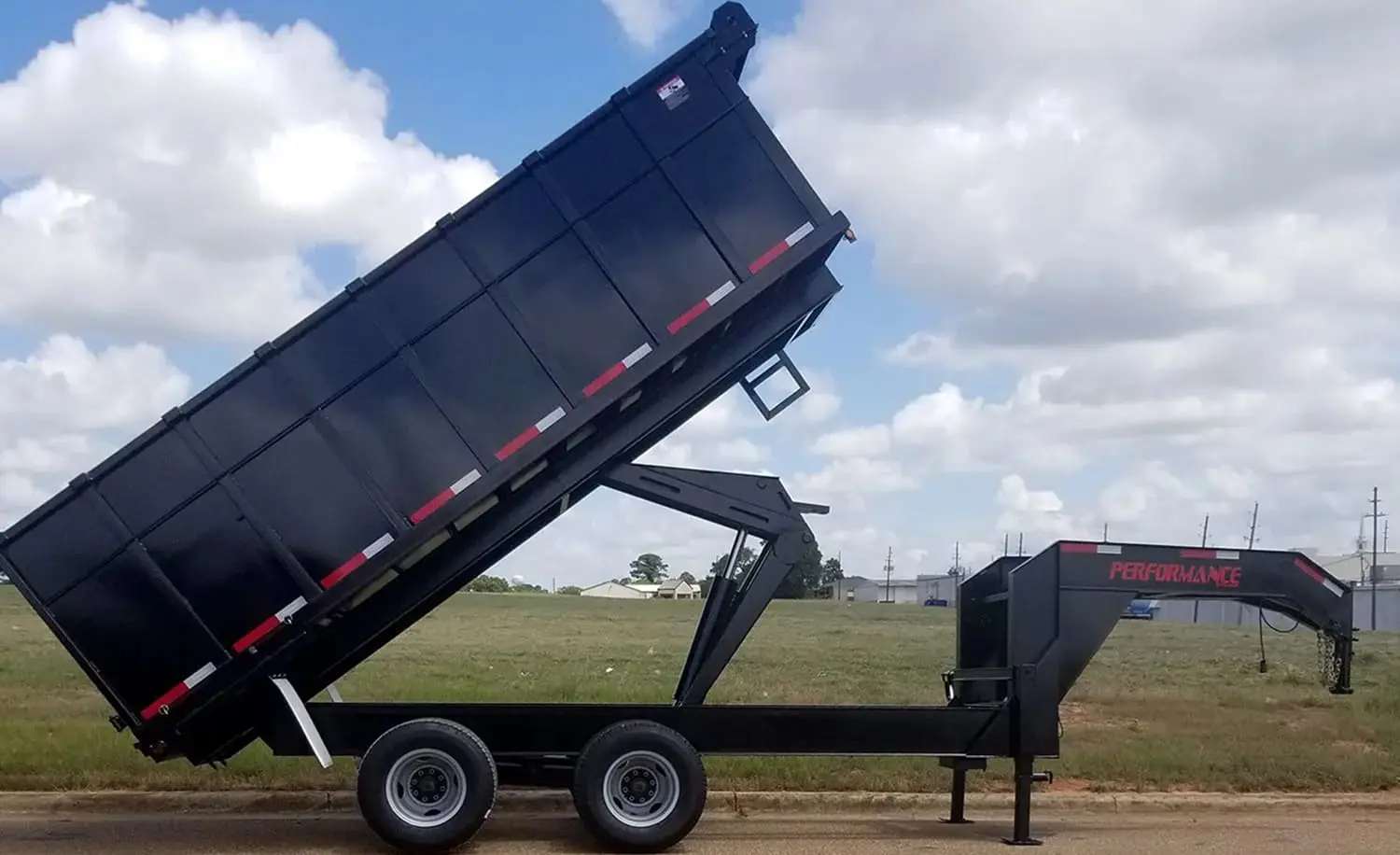

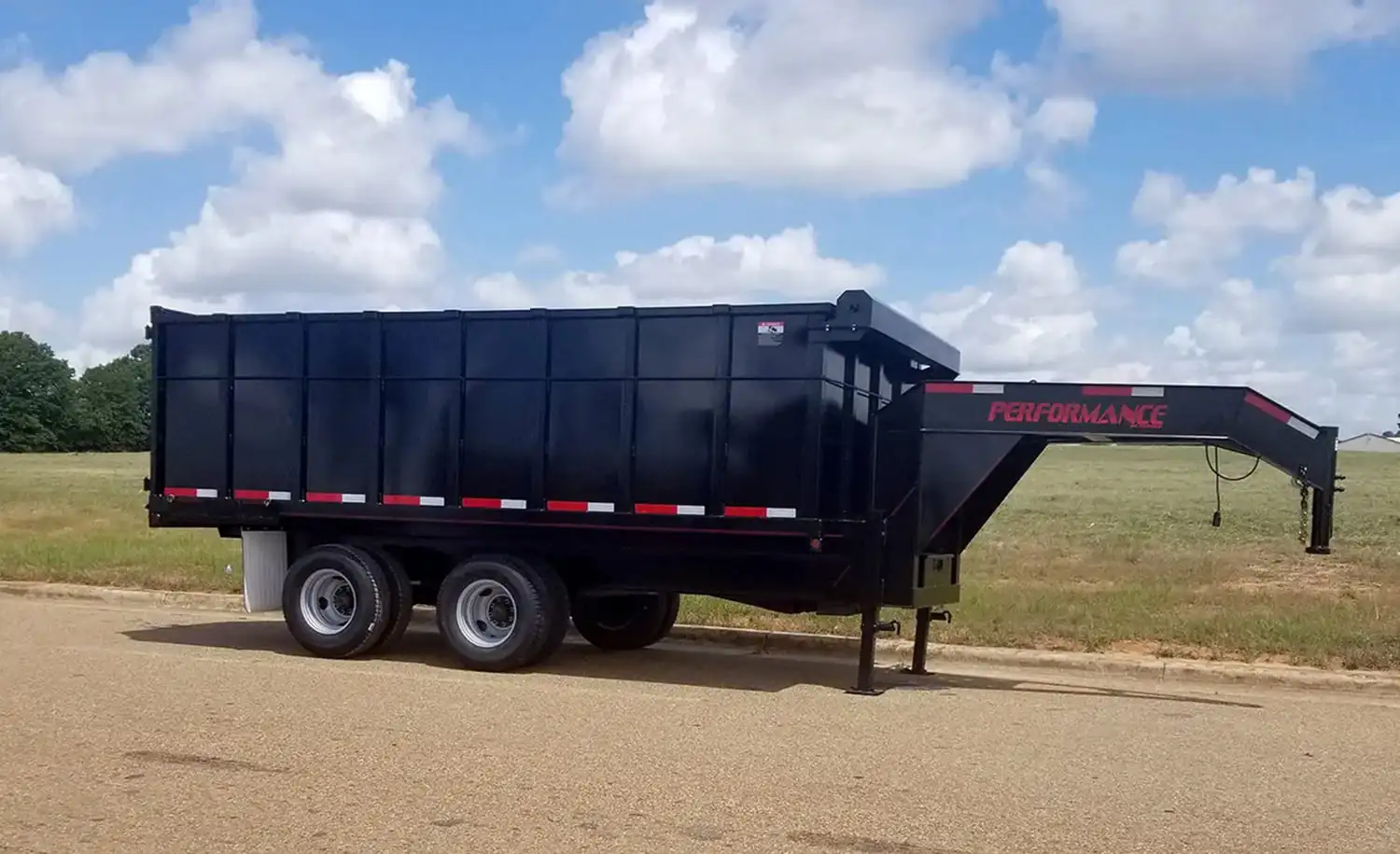

The HD9614GTD combines a wider 96" deck with a 14' length, offering a substantial platform for heavy loads. The tandem dual axles provide increased weight capacity, and the gooseneck hitch ensures stable towing. This trailer is designed for heavy-duty applications in construction, agriculture, and other demanding industries.
Features & Options
Standart Features
- Roll Up Tarp System
- Slide-In Ramps in the rear
- 4 D-Rings Welded in the floor
- 2-Way Gate on the rear
Options Available
- Roll Up Tarp System
- Slide-In Ramps in the rear
- 4 D-Rings Welded in the floor
- 2-Way Gate on the rear
Additional Features
- Coupler: 2 5/16 Adjustable Gooseneck
- Safety Chains: 3/8" with Safety Hooks
- Jack: 12000# Drop Leg Jack
- Axles: Two 10,000# Dexter Axles w/Electric Brakes
- Suspension: Equalizer System w/5 Leaf Slipper Springs
- Wheels: Powder Coated Silver Mods
- Gooseneck: 12" I-Beam
- Floor: 10 Ga Solid Steel
- Frame: 8" I-Beam
- Crossmembers: 3" Channel
- Sides: 4' Solid Sides
- Self Contained Electric Hydraulic Scissor Lift
- Enclosed Pump & Battery Box Mounted Under Bed of Trailer
- Complete Control Unit
- Double Rear Doors
- 1/2" Tie Rail
- Safety Reflective Marker Tape
- Complete Breakaway System
